Woodwork Tools

Pain Points

Flank wear

Gradual dulling of inserts and loss of cutting performance

Built-up edge

When pieces of the workpiece are welded to the cutting edge by hot pressing, chip tumors are created, leading to micro-chipping and rapid wear of the backing surfaces.

Microcrack

Localized stress concentrations due to mechanical instability

Thermo-mechanical failure

Thermo-mechanical failures can be caused by severe temperature fluctuations and mechanical shocks.

Edge deformation

Excessive heat and mechanical loads may cause deformation of the cutting edge

Groove wear

Groove wear occurs when rough workpiece surfaces abrade and scribe deep into the cutting zone on the tool

Solutions & Advantages

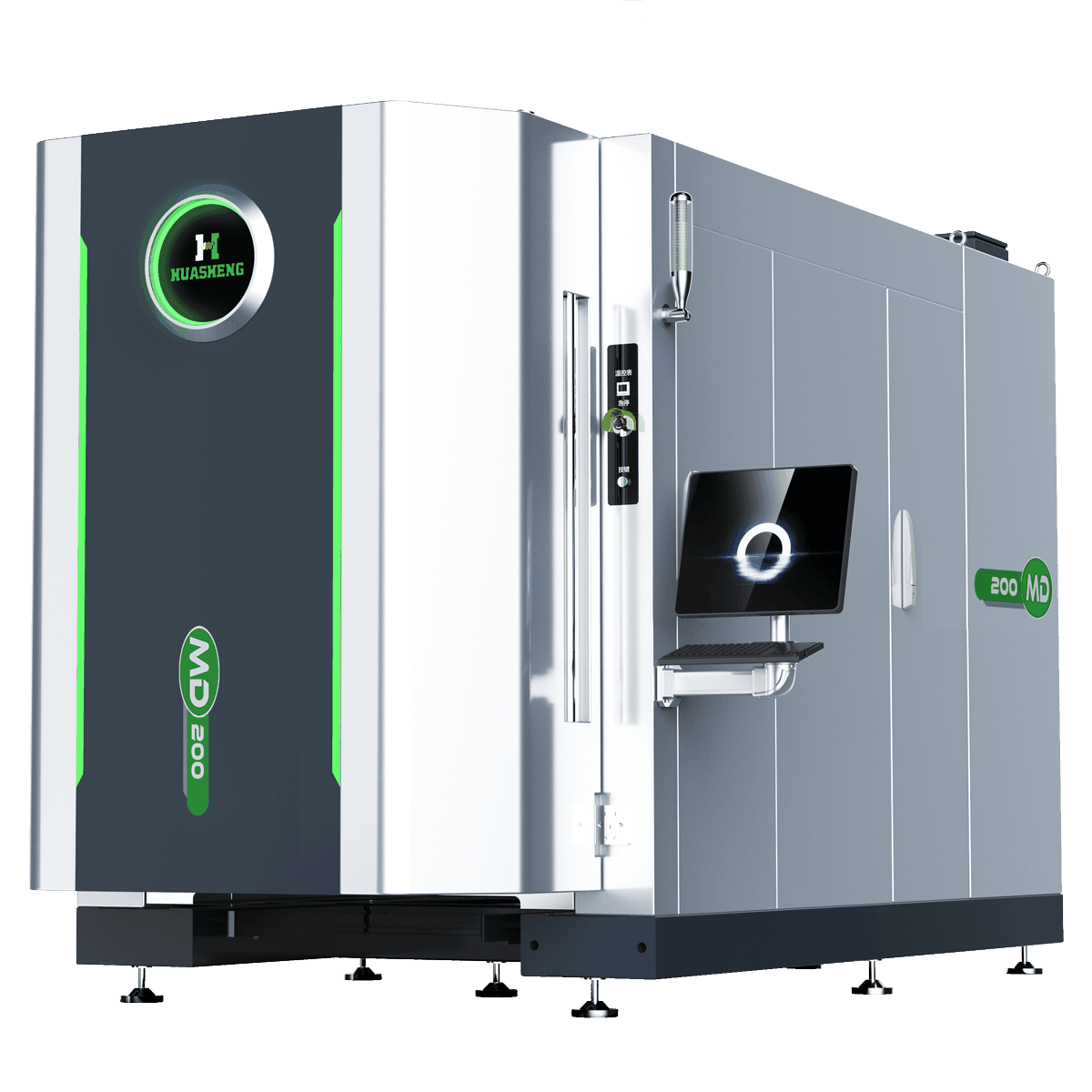

Huasheng self-developed arc platform, the use of arc ion plating technology to adjust the coating structure, to achieve the bias gradient, the preparation of the coating microstructure uniform and dense, with excellent mechanical and tribological properties.

Coating composition	ZrN-base
Coating color	Gold
Thicknesses(μm)	2.5±0.3
Rigidity(GPa)	33±2
Residual stress(Gpa)	-3.5±1
Coating temperature(℃)	<600
Antioxidant temperature(℃)	1100
